Ancillary Capabilities

Chiller – NECW 90LTQ

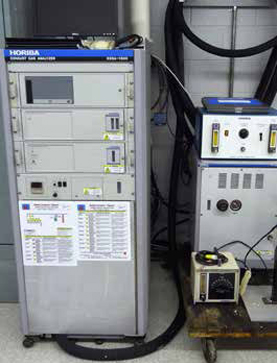

5 Gas – Horiba EXSA 1500
Combustion air engine make up unit – Q Corp
- Temperature Range 25 to 30C
- Humidity 15C dp
- Flow 42 m3/min
Horiba AFR Analyzers – Mexa 110 / Mexa 700
Flow meters – Micro Motion / EOX / FTI
- Ranges 0-1451 kg/min
Heat Exchangers – Dual and single tube/chillers
ATI spark angle monitors – IGTM – 2000

technology_-_tp_anc_cap_1_0

technology_-_tp_anc_cap_2

technology_-_tp_anc_cap_3

technology_-_tp_anc_cap_4

technology_-_tp_anc_cap_5

⇡

Utility Duty Beam eAxle

Class 1

Class 2

Class 3

Class 4

Class 5

Class 6

Class 7

Class 8

Features

Designed for Classes 3 & 4
Forced Lubrication w/Filter
Optional Electric Park Lock
Single Speed Gearbox
Optional Limited Slip Differential
Multiple Gear Ratios Available
Customizable Track Width
Adaptable to Preferred Wheel Ends

Product Specifications
Voltage (V)	800
GAWR	11,000 lbs. / 5,000 kg
Peak Output Torque (Nm)	9,650
Peak Power (kW)	405
Max Output Shaft Speed (RPM)	913
Park Lock	Optional (Electric Actuation)
Differential	Optional Limited Slip
Weight (kg)	382

Medium Duty Beam eAxle

Class 1

Class 2

Class 3

Class 4

Class 5

Class 6

Class 7

Class 8

Features

Designed for Classes 5 & 6
Force Lubrication w/Filter
Optional Electric Park Lock
Single Speed Gearbox
Optional Limited Slip Differential
Multiple Gear Ratios Available
Customizable Track Width
Adaptable to Preferred Wheel Ends

Product Specifications
Voltage (V)	800
GAWR	17,500 lbs. / 7,938 kg
Peak Output Torque (Nm)	15,300*
Peak Power (kW)	350
Max Output Shaft Speed (RPM)	856*
Park Lock	Optional (Electric Actuation)
Differential	Optional Limited Slip
Weight (kg)	580
*Various with Ratio Selected

Light Duty IRS eAxle

Class 1

Class 2

Class 3

Class 4

Class 5

Class 6

Class 7

Class 8

Features

Designed for Classes 1 & 2
Splash Lubricated
Open Differential
Single Speed Gearbox
Cost Effective Design
Ideal for Front or Rear Applications
Integrated Inverter

Product Specifications
Voltage (V)	400
GAWR	11,000 lbs. / 5,000 kg
Peak Output Torque (Nm)	4,090
Peak Power (kW)	150
Max Output Shaft Speed (RPM)	1,221
Park Lock	N/A
Differential	Open

Light Duty Beam eAxle

Class 1

Class 2

Class 3

Class 4

Class 5

Class 6

Class 7

Class 8

Features

Designed for Classes 1 & 2
Splash Lubricated
Open Differential
Single Speed Gearbox
Cost Effective Design
Customizable Track Width
Adaptable to Preferred Wheel Ends

Product Specifications
Voltage (V)	400
GAWR	7,275 lbs. / 3,300 kg
Peak Output Torque (Nm)	4,090
Peak Power (kW)	150
Max Output Shaft Speed (RPM)	1,221
Park Lock	N/A
Differential	Open

Flexform Conformable Hydrogen Storage Tank

Features

Type 4 hydrogen Tank
700 bar NWP
Conformable tank that can be configured to fit irregular spaces within a vehicle
Continuous manufacturing process that creates a foldable design that allows excellent packaging flexibility

Key Benefits

Fit hydrogen tanks into already existing and common packages between propulsion types, such as:
- Battery trays
- In between frame rails
- Spare tire compartment
Designed for volume production
More hydrogen can be stored in a given space compared to conventional storage types
Potential to reduce the need for pre-cooling
