Class 1

Class 2

Class 3

Class 4

Class 5

Class 6

Class 7

Class 8

Features

Designed for Classes 3 & 4
Forced Lubrication w/Filter
Optional Electric Park Lock
Single Speed Gearbox
Optional Limited Slip Differential
Multiple Gear Ratios Available
Customizable Track Width
Adaptable to Preferred Wheel Ends

Product Specifications
Voltage (V)	800
GAWR	11,000 lbs. / 5,000 kg
Peak Output Torque (Nm)	9,650
Peak Power (kW)	405
Max Output Shaft Speed (RPM)	913
Park Lock	Optional (Electric Actuation)
Differential	Optional Limited Slip
Weight (kg)	382

Class 1

Class 2

Class 3

Class 4

Class 5

Class 6

Class 7

Class 8

Features

Designed for Classes 5 & 6
Force Lubrication w/Filter
Optional Electric Park Lock
Single Speed Gearbox
Optional Limited Slip Differential
Multiple Gear Ratios Available
Customizable Track Width
Adaptable to Preferred Wheel Ends

Product Specifications
Voltage (V)	800
GAWR	17,500 lbs. / 7,938 kg
Peak Output Torque (Nm)	15,300*
Peak Power (kW)	350
Max Output Shaft Speed (RPM)	856*
Park Lock	Optional (Electric Actuation)
Differential	Optional Limited Slip
Weight (kg)	580
*Various with Ratio Selected

Class 1

Class 2

Class 3

Class 4

Class 5

Class 6

Class 7

Class 8

Features

Designed for Classes 1 & 2
Splash Lubricated
Open Differential
Single Speed Gearbox
Cost Effective Design
Ideal for Front or Rear Applications
Integrated Inverter

Product Specifications
Voltage (V)	400
GAWR	11,000 lbs. / 5,000 kg
Peak Output Torque (Nm)	4,090
Peak Power (kW)	150
Max Output Shaft Speed (RPM)	1,221
Park Lock	N/A
Differential	Open

Class 1

Class 2

Class 3

Class 4

Class 5

Class 6

Class 7

Class 8

Features

Designed for Classes 1 & 2
Splash Lubricated
Open Differential
Single Speed Gearbox
Cost Effective Design
Customizable Track Width
Adaptable to Preferred Wheel Ends

Product Specifications
Voltage (V)	400
GAWR	7,275 lbs. / 3,300 kg
Peak Output Torque (Nm)	4,090
Peak Power (kW)	150
Max Output Shaft Speed (RPM)	1,221
Park Lock	N/A
Differential	Open

Flexform Conformable Hydrogen Storage Tank

Features

Type 4 hydrogen Tank
700 bar NWP
Conformable tank that can be configured to fit irregular spaces within a vehicle
Continuous manufacturing process that creates a foldable design that allows excellent packaging flexibility

Key Benefits

Fit hydrogen tanks into already existing and common packages between propulsion types, such as:
- Battery trays
- In between frame rails
- Spare tire compartment
Designed for volume production
More hydrogen can be stored in a given space compared to conventional storage types
Potential to reduce the need for pre-cooling

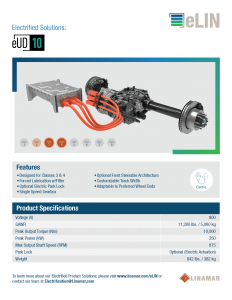

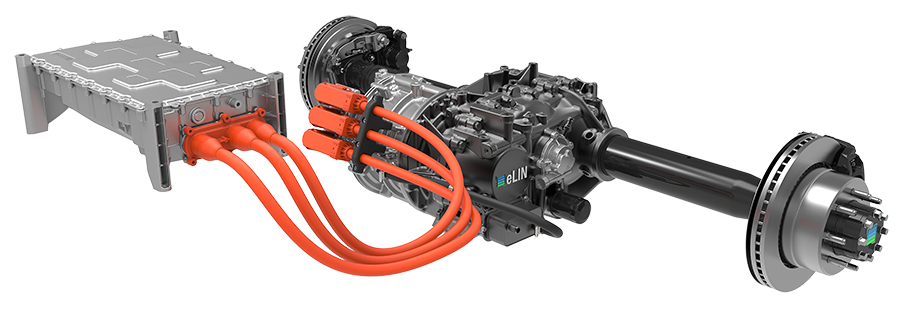

Product Specifications
Voltage (V):	800
GAWR:	11,200 lbs. / 5,080kg
Peak Output Torque (Nm):	10,000
Peak Power (kW):	250
Max Output Shaft Speed (RPM):	875
Park Lock (Nm):	Optional (Electric Actuation)
Weight:	842 lbs. / 382 kg
